MODEL
500 PHYSICAL CHARACTERISTICS
|
|
Hose
Size
|
Stainless
Steel Tube O.D.
|
Nominal
O.D. with Double Thermal Insulation
|
Minimum
Bend Radius
|
Max.
Working Pressure at 400 degrees F (204C)
|
Nominal
Weight
|
| 4 |
1/4"
6.35MM |
1"
25.4MM |
5"
12.7CM |
2800
PSI 197Kg/CM2 |
.38
lb/ft
.57 kg/m |
| 5 |
5/16"
7.94MM |
1-3/16"
30.16MM |
6"
15.24CM |
2400
PSI 169Kg/CM2 |
.40
lb/ft
.59 kg/m |
| 6 |
3/8"
9.5MM |
1-3/8"
35MM |
7"
17.78CM |
1800
PSI 127Kg/CM2 |
.45
lb/ft
.66 kg/m |
| 8 |
1/2"
12.7MM |
1-1/2"
38.1MM |
8"
20.32CM |
1500
PSI 105Kg/CM2 |
.52
lb/ft
.76 kg/m |
MODEL
500F (FLEXIBLE)
Model 500EF (Extra Flexible)
|
|
Hose
Size I.D.
|
Nominal
O.D. with Double Thermal Insulation
|
Max.
Working Pressure at 400 degrees F (204C)
|
Nominal
Weight
|
1/4"
6.35MM |
1-1/8"
2.86CM |
1300
PSI
91.4Kg/CM2 |
.42
lb/ft
.62 kg/m |
3/8"
9.52MM |
1-1/4"
3.17CM |
950
PSI
66.8Kg/CM2 |
.48
lb/ft
.71 kg/m |
1/2"
12.7MM |
1-3/8"
3.5CM |
800
PSI
56.2Kg/CM2 |
.52
lb/ft
.76 kg/m |
3/4"
19.05MM |
1-3/4"
4.44CM |
500
PSI
35.2Kg/CM2 |
.75
lb/ft
1.11 kg/m |
1"
25.4MM |
2"
5.08CM |
400
PSI
28.1Kg/CM2 |
1.0
lb/ft
1.48 kg/m |
1-1/4"
31.75MM |
2-3/8"
6.03CM |
300
PSI
21.1Kg/CM2 |
1.10
lb/ft
1.62 kg/m |
1-1/2"
3.8CM |
2-5/8"
6..67CM |
275
PSI
19.3Kg/CM2 |
1.38
lb/ft
2.04 kg/m |
2"
5.1CM |
3-1/8"
7.94CM |
250
PSI
7.6Kg/CM2 |
1.75
lb/ft
2.59 kg/m |
2-1/2"
6.35CM |
3-5/8"
9.21CM |
200
PSI
14.0Kg/CM2 |
2.25
lb/ft
3.33 kg/m |
3"
7.62CM |
4-1/8"
10.48CM |
150
PSI
10.5Kg/CM2 |
2.50
lb/ft
23.70 kg/m |
4"
10.16CM |
5-1/8"
13.02CM |
100
PSI
7.0Kg/CM2 |
3.25
lb/ft
4.81 kg/m |

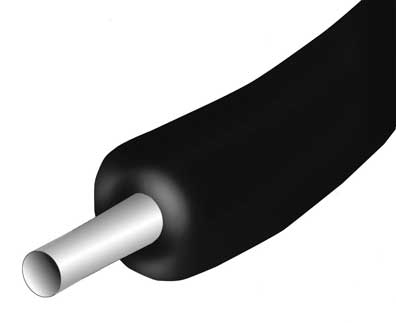

BARE
TUBE FOR
COMPRESSION FITTINGS
|
|
 |
|
